General information

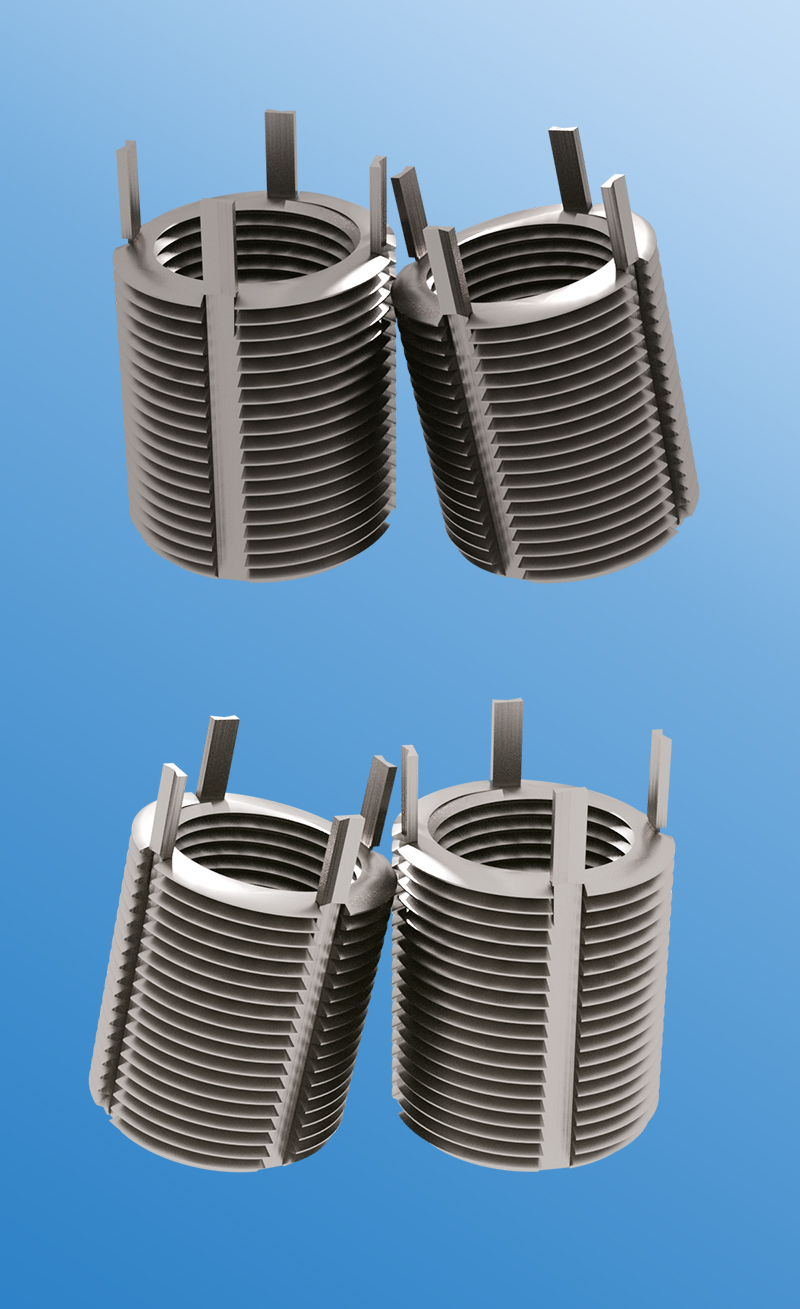

Hapare key locking threaded insertes are solid, one-piece inserts with key locking for use in original components or for repairing damaged threads. The locking keys of the Hapare threaded inserts with key lock provide a mechanical lock that prevents rotation due to vibration or torsion.
Material / tolerances / thread:
Material: steel, stainless steel
Tolerances:
+/- 0.25 mm, unless otherwise stated BSW, BSF, UNC and UNF thread series available, coating of hardened steel, threads are also available with thick and thin wall. We also manufacture non-standard threads to specification/drawing tap hole tolerance:
Threaded hole tolerance:
3.40 to 5.50 = +0.080/-0.025; 6.90
up to 10.80 = +0.100/-0.025; over 12.80 = +0.130/-0.025
Application area = light metal, steel, castings
KEY LOCKING THREADED INSERTS STEEL
| Artikel-Nr. Art.-no | Innengewinde Internal thread | Außengewinde External thread | Länge Length | Gewindebohrer Größe Threaddrill |
|---|---|---|---|---|
| d1 | d2 | L | ||
| CL060M | M6x1,0 | M10x1,25 | 10 | 8,80 |
| CL080M | M8x1,25 | M12x1,25 | 12 | 10,80 |
| CL100M | M10x1,5 | M14x1,5 | 14 | 12,80 |
| CL120M | M12x1,75 | M16x1,5 | 16 | 14,75 |
| CL140M | M14x2,00 | M20x1,5 | 20 | 18,75 |
| CL160M | M16x2,00 | M22x1,5 | 22 | 20,5 |
| CH050M | M5x0,8 | M10x1,25 | 10 | 8,8 |
| CH060M | M6x1,0 | M12x1,25 | 12 | 10,8 |
| CH080M | M8x1,25 | M14x1,5 | 14 | 12,8 |
| CH100M | M10x1,5 | M16x1,5 | 16 | 14,75 |
| CH120M | M12x1,75 | M18x1,5 | 18 | 16,75 |
| CH140M | M14x2,0 | M20x1,5 | 20 | 18,75 |
| CH160M | M16x2,0 | M22x1,5 | 22 | 20,5 |
| CH180M | M18x1,5 | M24x2,0 | 24 | 22,5 |
| CH200M | M20x2,5 | M30x2,0 | 30 | 28 |
| CH220M | M22x1,5 | M32x2,0 | 32 | 31 |
| CH240M | M24x3,0 | M33x2,0 | 33 | 30 |
KEY LOCKING THREADED INSERTS STAINLESS STEEL
| Artikel-Nr. Art.-no | Innengewinde Internal thread | Außengewinde External thread | Länge Length | Gewindebohrer Größe Threaddrill |
|---|---|---|---|---|
| d1 | d2 | L | ||
| CM020S | M2x0,4 | M4x0,7 | 3,00 | 3,4 |
| CM025S | M2,5x0,45 | M4,5x0,75 | 4,00 | 3,9 |
| CM030S | M3x0,5 | M5x0,8 | 4,00 | 4,4 |
| CM040S | M4x0,7 | M6x0,75 | 5,00 | 5,5 |
| CL050S | M5x0,8 | M8x1,25 | 8 | 6,90 |
| CL060S | M6x1,0 | M10x1,25 | 10 | 8,80 |
| CL080S | M8x1,25 | M12x1,25 | 12 | 10,80 |
| CL100S | M10x1,5 | M14x1,5 | 14 | 12,80 |
| CL120S | M12x1,75 | M16x1,5 | 16 | 14,75 |
| CL140S | M14x2,00 | M20x1,5 | 20 | 18,75 |
| CL160S | M16x2,00 | M22x1,5 | 22 | 20,5 |
| CH040S | M4x0,7 | M8x1,25 | 8 | 6,9 |
| CH050S | M5x0,8 | M10x1,25 | 10 | 8,8 |
| CH060S | M6x1,0 | M12x1,25 | 12 | 10,8 |
| CH080S | M8x1,25 | M14x1,5 | 14 | 12,8 |
| CH100S | M10x1,5 | M16x1,5 | 16 | 14,75 |
| CH120S | M12x1,75 | M18x1,5 | 18 | 16,75 |
| CH140S | M14x2,0 | M20x1,5 | 20 | 18,75 |
| CH160S | M16x2,0 | M22x1,5 | 22 | 20,5 |
| CH180S | M18x1,5 | M24x2,0 | 24 | 22,5 |
| CH200S | M20x2,5 | M30x2,0 | 30 | 28 |
| CH220S | M22x1,5 | M32x2,0 | 32 | 31 |
| CH240S | M24x3,0 | M33x2,0 | 33 | 30 |
